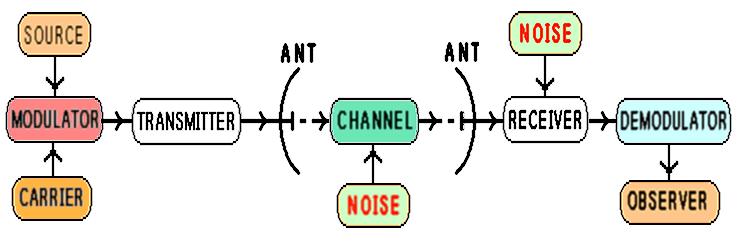

Communications System, End to End




The unified communications field, as it's now being called, is getting very advanced. Every year, new innovations are coming out that make the field of communications progress faster and faster. From cellular technology and the 4G mobile networks, to advanced business systems, that allow for real time visual conferences to take place and business directors around the world to communicate. Below are pictures on various ways that Communication happens from signal noise and satellites, to receiver systems, to your ears.


Modulations

Galactic Noise

Man Made Noise


  . .

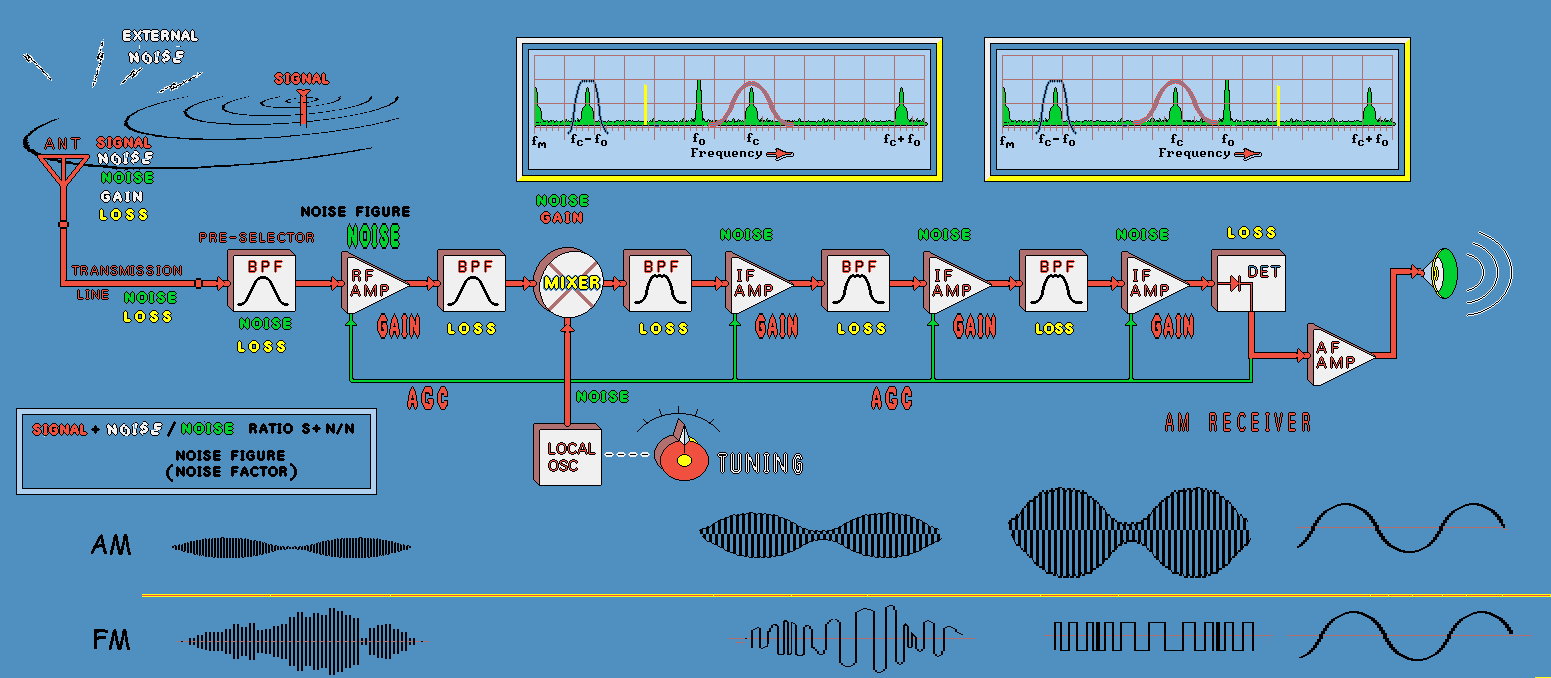

Receiver Noise






Bandwidth - SNR

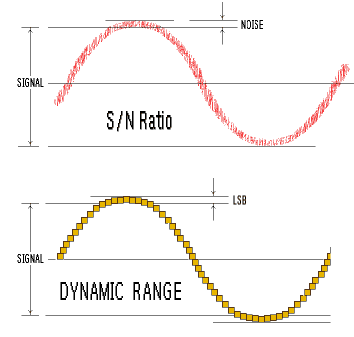

  Signal to Noise Ratio & Dynamic Range
For a given signal bandwidth, ideally, the receiver bandwidth should be the same. However, if the receiver is, say, twice the necessary bandwidth, the Signal-to-Noise Ratio is diminished, i.e., the noise has doubled.

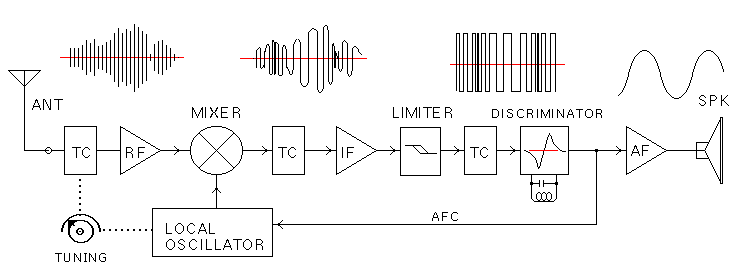

F M Receiver


T e l e p h o n y



Basic Telephone System (POTS)

Plain Old Telephone Service

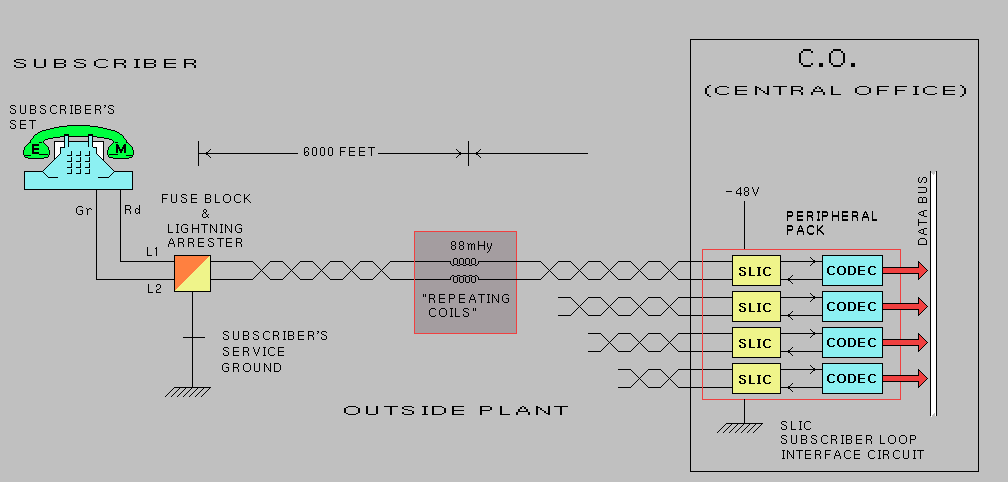

Subscriber's Loop
[ Subscriber Set ]--> [ Outside Plant ]-->
>--[ Central Office ]

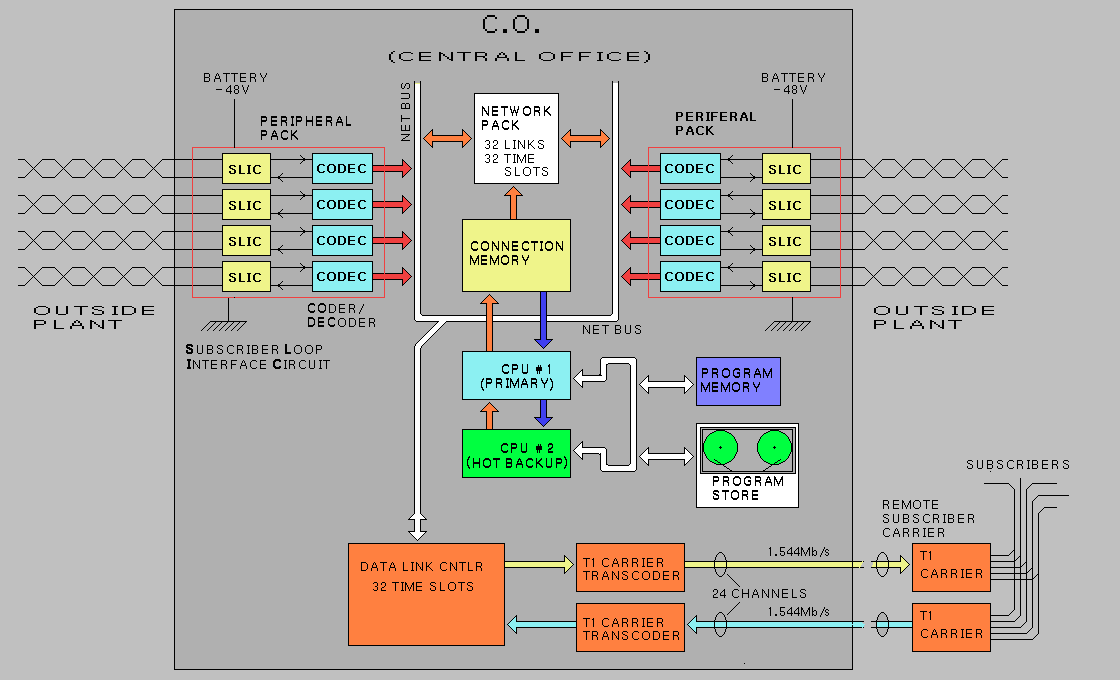

Central Office Switch, Digital
