 Capacitors: What Good Are They?
A capacitor is a passive electronic component that stores energy in the form of an electrostatic field.  In its simplest form, a capacitor consists of two conducting plates separated by an insulating material called the dielectric.  Capacitance is directly proportional to the surface areas of the plates, and is inversely proportional to the plates' separation.
Capacitance also depends on the dielectric constant of the dielectric material separating the plates.

The standard units of Capacitance,
farad: F
microfarad: µF (1 µF = 10-6 F)
nanofarad: nF (1 nF = 10-9 F)
picofarad: pF (1 pF = 10-12 F)

555 Timer

"Click"& See me Move
--------------------------------------Animation Speed--------------------------------------
Fast
Med
Slow
Very Slow
 Capacitor as a Timing Element


 For more on the 555 timer check out our 555 Page



 A.C. & D.C. Coupling

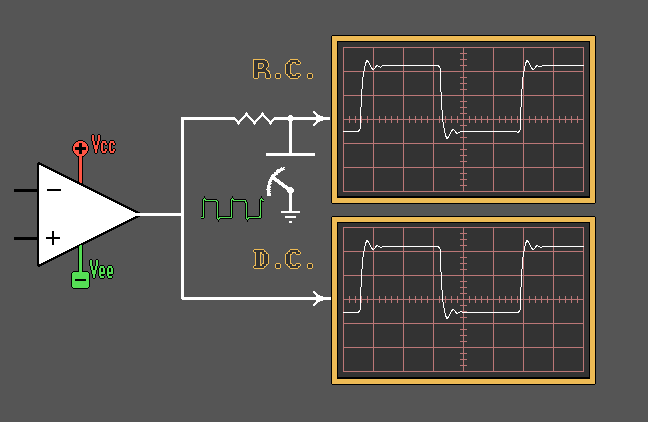

Notice  Differentiation in the A.C. channel

 Capacitor as a Coupling Element


R.C. & D.C. Coupling

Notice  Integration in the R.C. channel

Capacitor as a Filtering Element

Capacitors as Power Supply "Bypassing" Elements
------------Frequency Domain
----------Time Domain

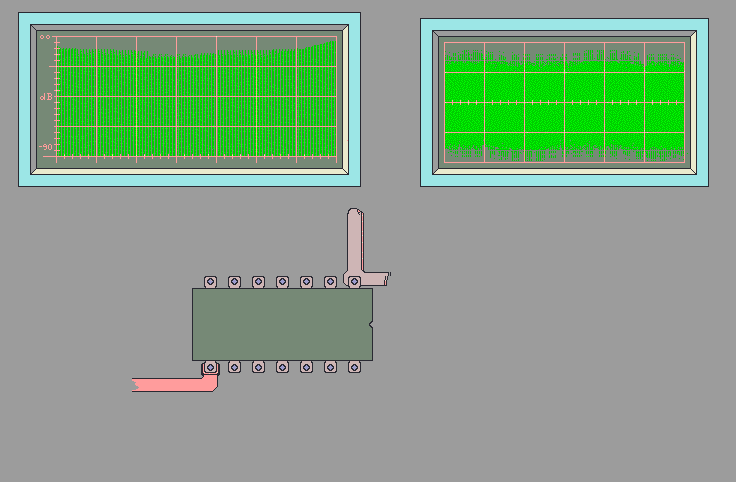

Note the Effect of Lead Length & Capacitor Type on Power Rail NOISE


For more on Bypass Capacitors check out our Bypassing Page


Bypass Capacitors' Minimum Impedance at Self Resonance Paralleling Bypass Capacitors
for Maximum Effectiveness

                                                               An illustration of the effects of Inductance due to Excessive
Lead Length.
..
