C O M M U N I C A T I O N S

Link Budgets using: Satmaster Pro MK 6.4
from Arrowe Technical Services  Free demo
Digital Downlink Digital  Uplink

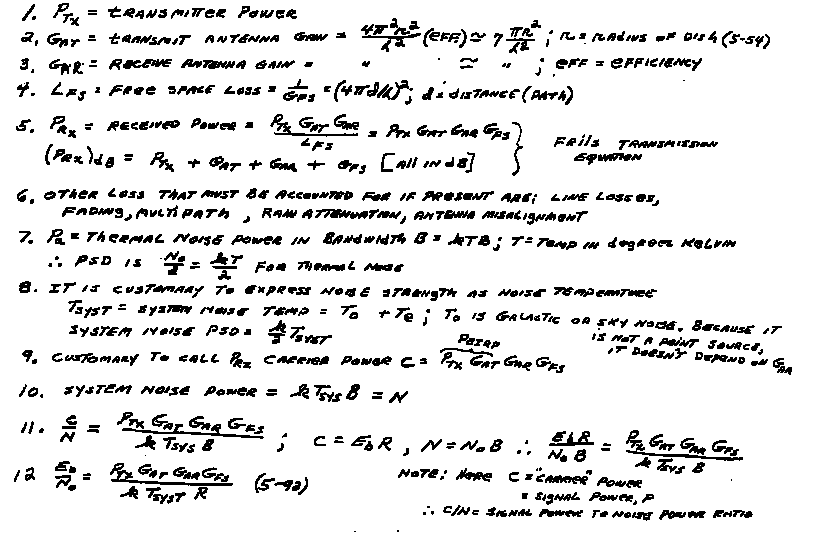

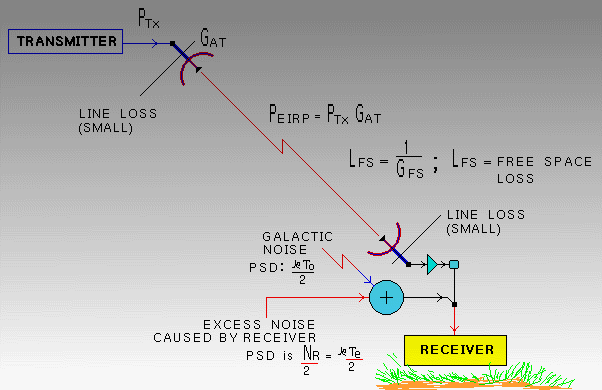

Link-Budget-Analysis
(See section 5-5 in Couch)
(satellite example)

..

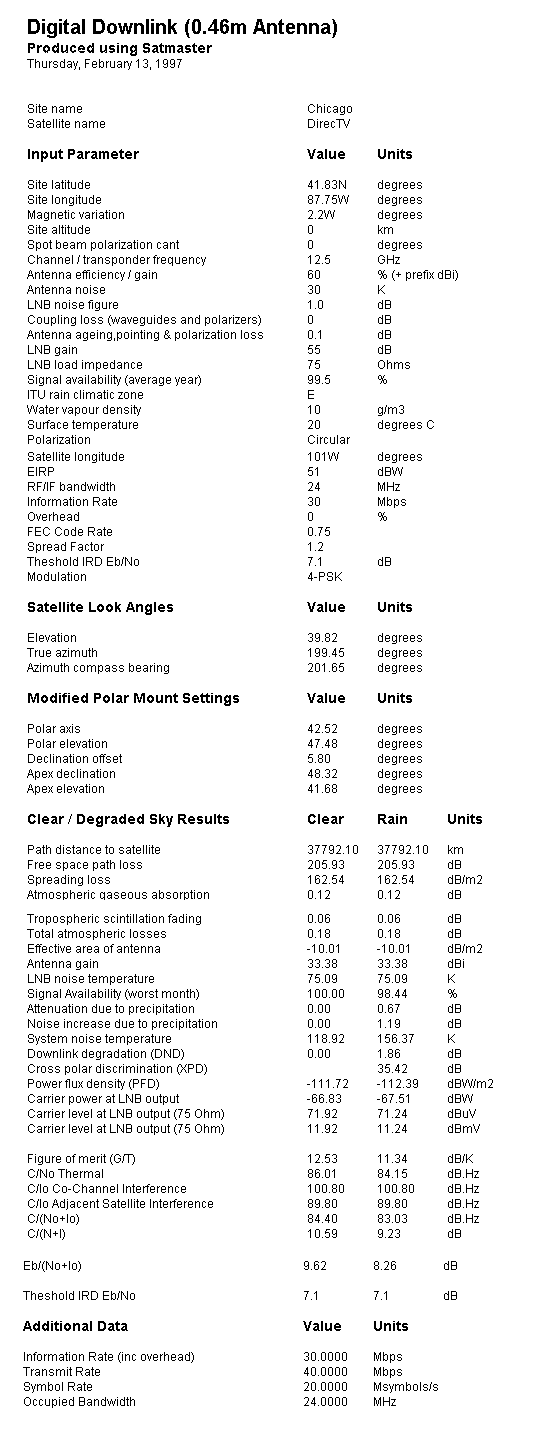

D i g i t a l   D o w n l i n k

using  Satmaster Pro MK 6.4

..

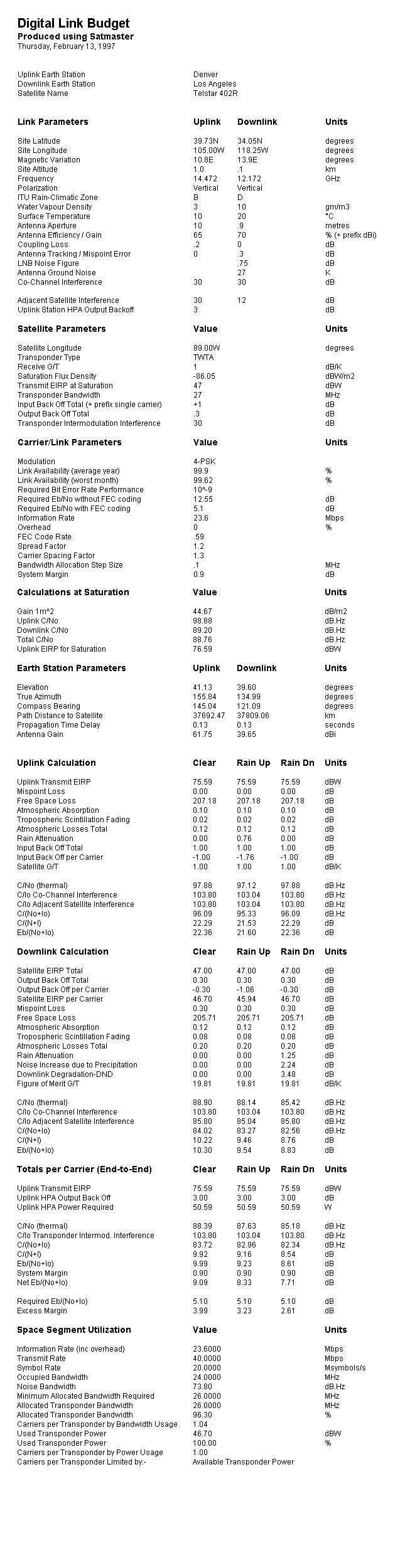

D i g i t a l    U p l i n k

using  Satmaster Pro MK 6.4
..
