The-ResistorPage
--Color Code

--Resistive Attenuator Design

--Fun with Resistors
--Intuitive Electronics Page

1/4 Watt
  "Fixed"
.
Single Turn Trimmer
"Pot"
Multi-turn Trimmer
.
Fixed
Symbol
.
Potentiometer
Symbol
Potentiometer
Wire Wound Resistor tied as a Rheostat
Wire Wound Resistor tied as a Voltage Divider
Resistors do a lot of Useful Things!
 Voltage to Current Convertor
When driving the input (base) of a transistor gain stage: you must convert the input voltage to a current by using a voltage to current convertor--a resistor.

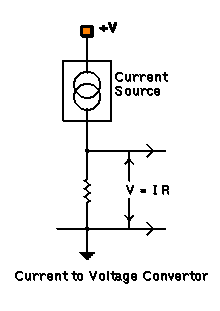

 Current to Voltage Convertor
When deriving a voltage from the collector of a transistor amplifier stage: you convert the output (collector) current into a voltage by using a Current to Voltage convertor in the collector circuit--you guessed it--a resistor.

Resistance is Determined partially by Composition,
and is inversely proportional to Cross Sectional Area
Notice Also that Resistance is proportional to Length

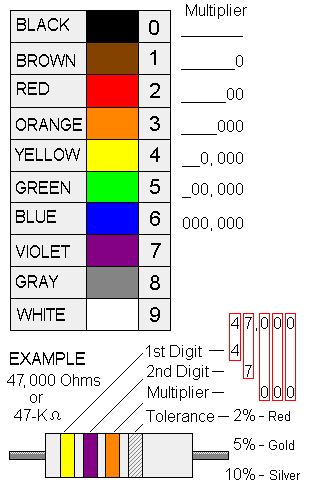

Resistor- Color -Code -----------------



4 Band Color Code
